    DICOM Multiplanar reconstruction
    In This Topic

    DICOM study often contains a set of images, which represent the planar slices of analyzed object made in one plane. Multiplanar reconstruction (MPR) allows to reconstruct the object image in a linear or curvilinear plane from a series of planar object slices.
    The SDK implements the DICOM MPR, which allows to reconstruct the object image in planar planes (coronal, sagittal, axial or oblique) or curvilinear planes from a series of parallel 2D DICOM images.



    Source data for DICOM MPR

    For multiplanar reconstruction the SDK requires a set of DICOM frames. MprDicomImagePlanarSlice class allows to specify the DICOM frame, which can be used for DICOM MPR.

    Here is an example that demonstrates how to create source data for DICOM MPR.
    ' The project, which uses this code, must have references to the following assemblies:
    ' - Vintasoft.Imaging.Dicom
    ' - Vintasoft.Imaging.Dicom.Mpr

    ''' <summary>
    ''' Creates the <see cref="Vintasoft.Imaging.Dicom.Mpr.MprDicomImagePlanarSlice"/> for DICOM MPR.
    ''' </summary>
    ''' <param name="sourceDicomFiles">The source DICOM files.</param>
    ''' <returns>
    ''' The source data for DICOM MPR.
    ''' </returns>
    ''' <exception cref="System.ArgumentNullException">Thrown if <i>sourceDicomFiles</i> is <b>null</b>.</exception>
    Public Shared Function CreateSourceDicomFrames(ParamArray sourceDicomFiles As Vintasoft.Imaging.Codecs.ImageFiles.Dicom.DicomFile()) As Vintasoft.Imaging.Dicom.Mpr.MprDicomImagePlanarSlice()
        ' if source DICOM files are not specified
        If sourceDicomFiles Is Nothing Then
            Throw New System.ArgumentNullException()
        End If

        ' a list of source MPR slices
        Dim sourceMprSlices As New System.Collections.Generic.List(Of Vintasoft.Imaging.Dicom.Mpr.MprDicomImagePlanarSlice)()

        ' for each DICOM file
        For Each sourceDicomFile As Vintasoft.Imaging.Codecs.ImageFiles.Dicom.DicomFile In sourceDicomFiles
            ' for each DICOM frame
            For Each frame As Vintasoft.Imaging.Codecs.ImageFiles.Dicom.DicomFrame In sourceDicomFile.Pages
                ' create MPR slice from DICOM frame
                sourceMprSlices.Add(New Vintasoft.Imaging.Dicom.Mpr.MprDicomImagePlanarSlice(frame))
            Next
        Next

        Return sourceMprSlices.ToArray()
    End Function


    // The project, which uses this code, must have references to the following assemblies:
    // - Vintasoft.Imaging.Dicom
    // - Vintasoft.Imaging.Dicom.Mpr

    /// <summary>
    /// Creates the <see cref="Vintasoft.Imaging.Dicom.Mpr.MprDicomImagePlanarSlice"/> for DICOM MPR.
    /// </summary>
    /// <param name="sourceDicomFiles">The source DICOM files.</param>
    /// <returns>
    /// The source data for DICOM MPR.
    /// </returns>
    /// <exception cref="System.ArgumentNullException">Thrown if <i>sourceDicomFiles</i> is <b>null</b>.</exception>
    public static Vintasoft.Imaging.Dicom.Mpr.MprDicomImagePlanarSlice[] CreateSourceDicomFrames(
        params Vintasoft.Imaging.Codecs.ImageFiles.Dicom.DicomFile[] sourceDicomFiles)
    {
        // if source DICOM files are not specified
        if (sourceDicomFiles == null)
            throw new System.ArgumentNullException();

        // a list of source MPR slices
        System.Collections.Generic.List<Vintasoft.Imaging.Dicom.Mpr.MprDicomImagePlanarSlice> sourceMprSlices =
            new System.Collections.Generic.List<Vintasoft.Imaging.Dicom.Mpr.MprDicomImagePlanarSlice>();

        // for each DICOM file
        foreach (Vintasoft.Imaging.Codecs.ImageFiles.Dicom.DicomFile sourceDicomFile in sourceDicomFiles)
        {
            // for each DICOM frame
            foreach (Vintasoft.Imaging.Codecs.ImageFiles.Dicom.DicomFrame frame in sourceDicomFile.Pages)
            {
                // create MPR slice from DICOM frame
                sourceMprSlices.Add(new Vintasoft.Imaging.Dicom.Mpr.MprDicomImagePlanarSlice(frame));
            }
        }

        return sourceMprSlices.ToArray();
    }





    DICOM MPR image

    DICOM MPR image is a 3D cube, which is constructed from a set of DICOM frames of a DICOM study, and represented by MprImage class. DICOM MPR image can be constructed from source DICOM frames if they satisfy the following requirements:

    DICOM MPR image can be initialized by DICOM frames in constructor of MprImage class or using MprImage.Initialize method.

    Initialized DICOM MPR image can provide information about location (MprImage.Location, MprImage.XAxis, MprImage.YAxis, MprImage.ZAxis) and size (MprImage.XDataLength, MprImage.YDataLength, MprImage.ZDataLength, MprImage.DiagonalLength) of DICOM MPR image in 3D-space.


    Initialized DICOM MPR image must be filled for getting information about pixel values of 3D cube.

    MprImage.FillDataSync method allows to fill MPR image data synchronously, MprImage.FillDataAsync method allows to fill MPR image data asynchronously.
    MprImage.FillDataProgress event allows to obtain information about the filling progress of MPR data. MprImage.FillDataFinished event allows to determine when the filling process of MPR data is finished. MprImage.FillDataError property allows to determine if error occurs during the filling process of MPR data.
    MprImage.FillDataThreadCount property allows to set maximum count of threads, which should be used for filling MPR data.

    Here is an example that demonstrates how to create, initialize and synchronously fill DICOM MPR image.
    ' The project, which uses this code, must have references to the following assemblies:
    ' - Vintasoft.Imaging.Dicom
    ' - Vintasoft.Imaging.Dicom.Mpr

    ''' <summary>
    ''' Creates the initialized <see cref="Vintasoft.Imaging.Dicom.Mpr.MprImage"/>
    ''' from <see cref="Vintasoft.Imaging.Codecs.ImageFiles.Dicom.DicomFile"/> array.
    ''' </summary>
    ''' <param name="sourceDicomFiles">The source DICOM files.</param>
    ''' <returns>
    ''' The initialized <see cref="Vintasoft.Imaging.Dicom.Mpr.MprImage"/>.
    ''' </returns>
    ''' <exception cref="System.ArgumentNullException">Thrown if <i>sourceDicomFiles</i> is <b>null</b>.</exception>
    Public Shared Function CreateInitAndSyncFill(ParamArray sourceDicomFiles As Vintasoft.Imaging.Codecs.ImageFiles.Dicom.DicomFile()) As Vintasoft.Imaging.Dicom.Mpr.MprImage
        ' if source DICOM files are not specified
        If sourceDicomFiles Is Nothing Then
            Throw New System.ArgumentNullException()
        End If

        ' a list of source MPR slices
        Dim sourceMprSlices As New System.Collections.Generic.List(Of Vintasoft.Imaging.Dicom.Mpr.MprDicomImagePlanarSlice)()

        ' for each DICOM file
        For Each sourceDicomFile As Vintasoft.Imaging.Codecs.ImageFiles.Dicom.DicomFile In sourceDicomFiles
            ' for each DICOM frame
            For Each sourceDicomFrame As Vintasoft.Imaging.Codecs.ImageFiles.Dicom.DicomFrame In sourceDicomFile.Pages
                ' create MPR slice from DICOM frame
                sourceMprSlices.Add(New Vintasoft.Imaging.Dicom.Mpr.MprDicomImagePlanarSlice(sourceDicomFrame))
            Next
        Next

        ' create the MPR image
        Dim mprImage As New Vintasoft.Imaging.Dicom.Mpr.MprImage()

        ' initialize the source data
        mprImage.Initialize(sourceMprSlices.ToArray())

        ' fill the MPR image data synchronously
        mprImage.FillDataSync()

        Return mprImage
    End Function


    // The project, which uses this code, must have references to the following assemblies:
    // - Vintasoft.Imaging.Dicom
    // - Vintasoft.Imaging.Dicom.Mpr

    /// <summary>
    /// Creates the initialized <see cref="Vintasoft.Imaging.Dicom.Mpr.MprImage"/>
    /// from <see cref="Vintasoft.Imaging.Codecs.ImageFiles.Dicom.DicomFile"/> array.
    /// </summary>
    /// <param name="sourceDicomFiles">The source DICOM files.</param>
    /// <returns>
    /// The initialized <see cref="Vintasoft.Imaging.Dicom.Mpr.MprImage"/>.
    /// </returns>
    /// <exception cref="System.ArgumentNullException">Thrown if <i>sourceDicomFiles</i> is <b>null</b>.</exception>
    public static Vintasoft.Imaging.Dicom.Mpr.MprImage CreateInitAndSyncFill(
        params Vintasoft.Imaging.Codecs.ImageFiles.Dicom.DicomFile[] sourceDicomFiles)
    {
        // if source DICOM files are not specified
        if (sourceDicomFiles == null)
            throw new System.ArgumentNullException();

        // a list of source MPR slices
        System.Collections.Generic.List<Vintasoft.Imaging.Dicom.Mpr.MprDicomImagePlanarSlice> sourceMprSlices =
            new System.Collections.Generic.List<Vintasoft.Imaging.Dicom.Mpr.MprDicomImagePlanarSlice>();

        // for each DICOM file
        foreach (Vintasoft.Imaging.Codecs.ImageFiles.Dicom.DicomFile sourceDicomFile in sourceDicomFiles)
        {
            // for each DICOM frame
            foreach (Vintasoft.Imaging.Codecs.ImageFiles.Dicom.DicomFrame sourceDicomFrame in sourceDicomFile.Pages)
            {
                // create MPR slice from DICOM frame
                sourceMprSlices.Add(new Vintasoft.Imaging.Dicom.Mpr.MprDicomImagePlanarSlice(sourceDicomFrame));
            }
        }

        // create the MPR image
        Vintasoft.Imaging.Dicom.Mpr.MprImage mprImage = new Vintasoft.Imaging.Dicom.Mpr.MprImage();

        // initialize the source data
        mprImage.Initialize(sourceMprSlices.ToArray());

        // fill the MPR image data synchronously
        mprImage.FillDataSync();

        return mprImage;
    }





    DICOM MPR slice

    The DICOM MPR slice can be created when DICOM MPR image is initialized, the filling of DICOM MPR image is not mandatory.
    Orthogonal planar 2D slice of DICOM MPR image can be created using MprImage.CreateAxialSlice, MprImage.CreateCoronalSlice, MprImage.CreateSagittalSlice methods or using a constructor of MprPlanarSlice class.
    Oblique planar 3D slice of DICOM MPR image can be created using MprImage.CreatePlanarSlice method or using a constructor of MprPlanarSlice class.
    Curved 3D slice of DICOM MPR image can be created using MprImage.CreateCurvilinearSlice method or using a constructor of MprCurvilinearSlice or MprPolylineSlice class.

    MprSlice class is a base class for all DICOM MPR slices. The class allows to define the slice location, size and thickness in 3D space and also the mode of slice rendering.

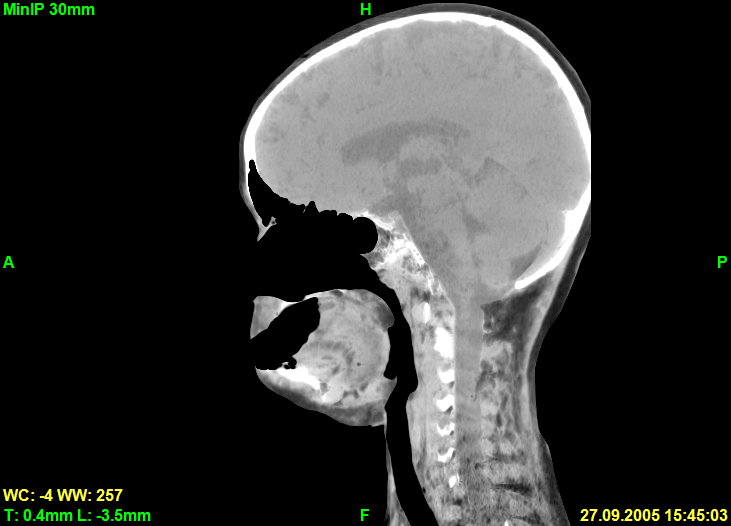

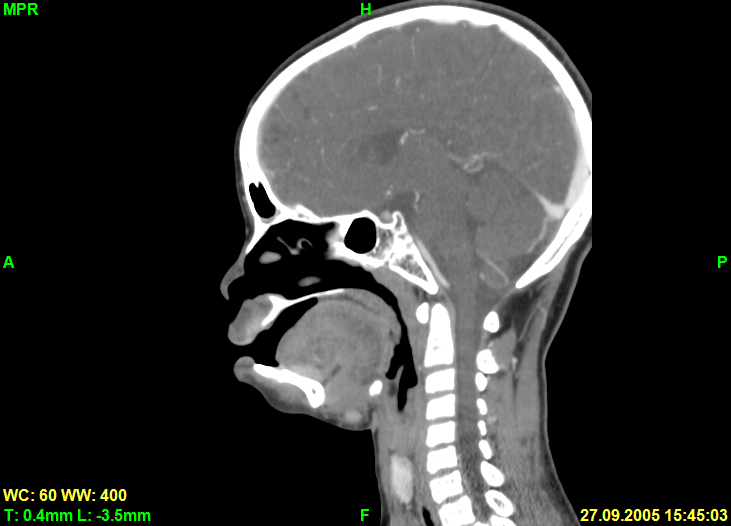

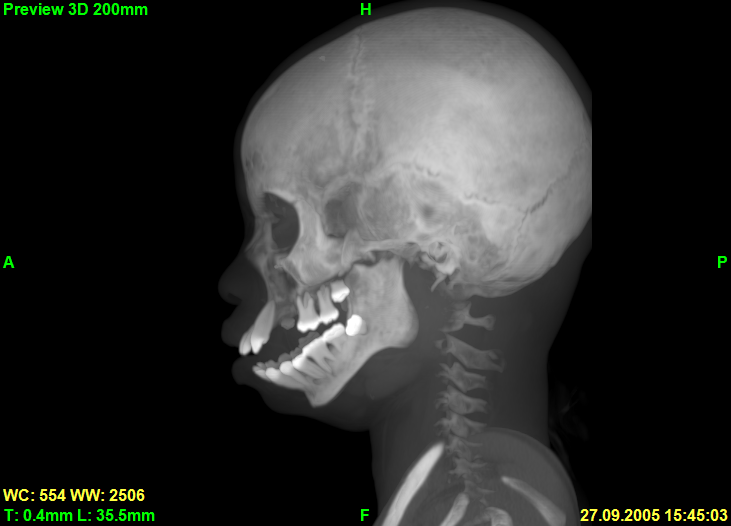

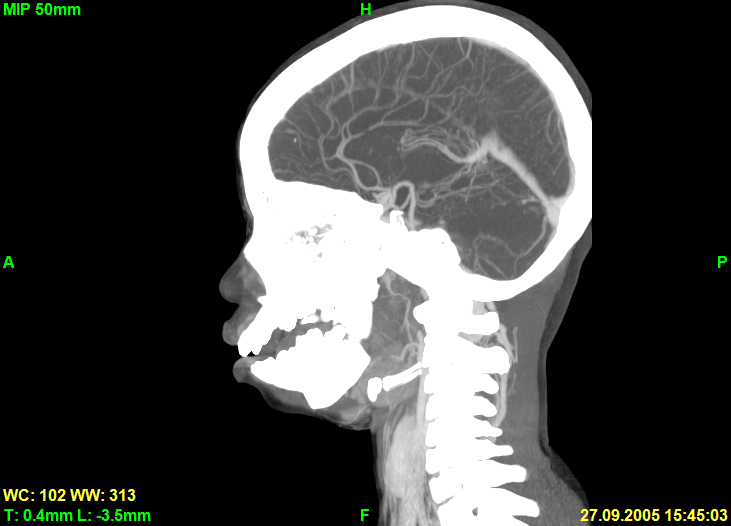

    The following modes of slice rendering are supported:

    Here is an example that demonstrates how to create the coronal and sagittal slices of DICOM MPR image.
    ' The project, which uses this code, must have references to the following assemblies:
    ' - Vintasoft.Imaging
    ' - Vintasoft.Imaging.Dicom.Mpr

    ''' <summary>
    ''' Creates the coronal and sagittal slices for MPR image.
    ''' </summary>
    ''' <param name="mprImage">The MPR image.</param>
    ''' <param name="coronalSlice">The coronal slice.</param>
    ''' <param name="sagittalSlice">The sagittal slice.</param>
    Public Shared Sub CreateCoronalAndSagittalSlices(mprImage As Vintasoft.Imaging.Dicom.Mpr.MprImage, ByRef coronalSlice As Vintasoft.Imaging.Dicom.Mpr.MprPlanarSlice, ByRef sagittalSlice As Vintasoft.Imaging.Dicom.Mpr.MprPlanarSlice)
        ' calculate the MPR image center
        Dim mprImageCenter As New Vintasoft.Imaging.VintasoftPoint3D(mprImage.XLength / 2.0, mprImage.YLength / 2.0, mprImage.ZLength / 2.0)

        ' the coronal slice location
        Dim coronalSliceLocation As New Vintasoft.Imaging.VintasoftPoint3D(0, mprImageCenter.Y, mprImage.ZLength)
        ' the horizontal axis for the coronal slice
        Dim coronalSliceXAxis As Vintasoft.Imaging.VintasoftVector3D = Vintasoft.Imaging.VintasoftVector3D.XAxis
        ' the vertical axis for the coronal slice
        ' (invert vertical axis because Y-axis in screen coordinate system is going from top to bottom and
        ' Z-axis in DICOM coordinate system is going from bottom to top)
        Dim coronalSliceYAxis As Vintasoft.Imaging.VintasoftVector3D = -Vintasoft.Imaging.VintasoftVector3D.ZAxis
        ' create the coronal slice
        coronalSlice = New Vintasoft.Imaging.Dicom.Mpr.MprPlanarSlice(coronalSliceLocation, coronalSliceXAxis, coronalSliceYAxis, mprImage.XLength, mprImage.ZLength)


        ' the sagittal slice location
        Dim sagittalSliceLocation As New Vintasoft.Imaging.VintasoftPoint3D(mprImageCenter.X, 0, mprImage.ZLength)
        ' the horizontal axis for the sagittal slice
        Dim sagittalSliceXAxis As Vintasoft.Imaging.VintasoftVector3D = Vintasoft.Imaging.VintasoftVector3D.YAxis
        ' the vertical axis for the sagittal slice
        ' (invert vertical axis because Y-axis in screen coordinate system is going from top to bottom and
        ' Z-axis in DICOM coordinate system is going from bottom to top)
        Dim sagittalSliceYAxis As Vintasoft.Imaging.VintasoftVector3D = -Vintasoft.Imaging.VintasoftVector3D.ZAxis
        ' create the sagittal slice
        sagittalSlice = New Vintasoft.Imaging.Dicom.Mpr.MprPlanarSlice(sagittalSliceLocation, sagittalSliceXAxis, sagittalSliceYAxis, mprImage.YLength, mprImage.ZLength)
    End Sub


    // The project, which uses this code, must have references to the following assemblies:
    // - Vintasoft.Imaging
    // - Vintasoft.Imaging.Dicom.Mpr

    /// <summary>
    /// Creates the coronal and sagittal slices for MPR image.
    /// </summary>
    /// <param name="mprImage">The MPR image.</param>
    /// <param name="coronalSlice">The coronal slice.</param>
    /// <param name="sagittalSlice">The sagittal slice.</param>
    public static void CreateCoronalAndSagittalSlices(
        Vintasoft.Imaging.Dicom.Mpr.MprImage mprImage,
        out Vintasoft.Imaging.Dicom.Mpr.MprPlanarSlice coronalSlice,
        out Vintasoft.Imaging.Dicom.Mpr.MprPlanarSlice sagittalSlice)
    {
        // calculate the MPR image center
        Vintasoft.Imaging.VintasoftPoint3D mprImageCenter =
            new Vintasoft.Imaging.VintasoftPoint3D(
                mprImage.XLength / 2.0,
                mprImage.YLength / 2.0,
                mprImage.ZLength / 2.0);

        // the coronal slice location
        Vintasoft.Imaging.VintasoftPoint3D coronalSliceLocation =
            new Vintasoft.Imaging.VintasoftPoint3D(0, mprImageCenter.Y, mprImage.ZLength);
        // the horizontal axis for the coronal slice
        Vintasoft.Imaging.VintasoftVector3D coronalSliceXAxis = Vintasoft.Imaging.VintasoftVector3D.XAxis;
        // the vertical axis for the coronal slice
        // (invert vertical axis because Y-axis in screen coordinate system is going from top to bottom and
        // Z-axis in DICOM coordinate system is going from bottom to top)
        Vintasoft.Imaging.VintasoftVector3D coronalSliceYAxis = -Vintasoft.Imaging.VintasoftVector3D.ZAxis;
        // create the coronal slice
        coronalSlice = new Vintasoft.Imaging.Dicom.Mpr.MprPlanarSlice(
            coronalSliceLocation, coronalSliceXAxis, coronalSliceYAxis,
            mprImage.XLength, mprImage.ZLength);


        // the sagittal slice location
        Vintasoft.Imaging.VintasoftPoint3D sagittalSliceLocation =
            new Vintasoft.Imaging.VintasoftPoint3D(mprImageCenter.X, 0, mprImage.ZLength);
        // the horizontal axis for the sagittal slice
        Vintasoft.Imaging.VintasoftVector3D sagittalSliceXAxis =
            Vintasoft.Imaging.VintasoftVector3D.YAxis;
        // the vertical axis for the sagittal slice
        // (invert vertical axis because Y-axis in screen coordinate system is going from top to bottom and
        // Z-axis in DICOM coordinate system is going from bottom to top)
        Vintasoft.Imaging.VintasoftVector3D sagittalSliceYAxis = -Vintasoft.Imaging.VintasoftVector3D.ZAxis;
        // create the sagittal slice
        sagittalSlice = new Vintasoft.Imaging.Dicom.Mpr.MprPlanarSlice(
            sagittalSliceLocation, sagittalSliceXAxis, sagittalSliceYAxis,
            mprImage.YLength, mprImage.ZLength);
    }





    DICOM MPR slice image

    MprImage.RenderSlice method allows to get an image for DICOM MPR slice. The image of DICOM MPR slice can be get only if DICOM MPR image is initialized and filled.

    Here is an example that demonstrates how to get the images of coronal and sagittal slices of DICOM MPR image.
    ' The project, which uses this code, must have references to the following assemblies:
    ' - Vintasoft.Imaging.Dicom.Mpr

    ''' <summary>
    ''' Renders the coronal and sagittal slices.
    ''' </summary>
    ''' <param name="mprImage">The MPR image.</param>
    ''' <param name="coronalSliceImage">The coronal slice image.</param>
    ''' <param name="sagittalSliceImage">The sagittal slice image.</param>
    Public Shared Sub RenderSlice(mprImage As Vintasoft.Imaging.Dicom.Mpr.MprImage, ByRef coronalSliceImage As Vintasoft.Imaging.Dicom.Mpr.MprImageSlice, ByRef sagittalSliceImage As Vintasoft.Imaging.Dicom.Mpr.MprImageSlice)
        ' create the coronal slice
        Dim coronalSlice As Vintasoft.Imaging.Dicom.Mpr.MprPlanarSlice = mprImage.CreateCoronalSlice(mprImage.YLength / 2.0)
        ' render the coronal slice
        coronalSliceImage = mprImage.RenderSlice(coronalSlice)

        ' create the sagittal slice
        Dim sagittalSlice As Vintasoft.Imaging.Dicom.Mpr.MprPlanarSlice = mprImage.CreateSagittalSlice(mprImage.XLength / 2.0)
        ' render the sagittal slice
        sagittalSliceImage = mprImage.RenderSlice(sagittalSlice)
    End Sub


    // The project, which uses this code, must have references to the following assemblies:
    // - Vintasoft.Imaging.Dicom.Mpr

    /// <summary>
    /// Renders the coronal and sagittal slices.
    /// </summary>
    /// <param name="mprImage">The MPR image.</param>
    /// <param name="coronalSliceImage">The coronal slice image.</param>
    /// <param name="sagittalSliceImage">The sagittal slice image.</param>
    public static void RenderSlice(
        Vintasoft.Imaging.Dicom.Mpr.MprImage mprImage,
        out Vintasoft.Imaging.Dicom.Mpr.MprImageSlice coronalSliceImage,
        out Vintasoft.Imaging.Dicom.Mpr.MprImageSlice sagittalSliceImage)
    {
        // create the coronal slice
        Vintasoft.Imaging.Dicom.Mpr.MprPlanarSlice coronalSlice = mprImage.CreateCoronalSlice(mprImage.YLength / 2.0);
        // render the coronal slice
        coronalSliceImage = mprImage.RenderSlice(coronalSlice);

        // create the sagittal slice
        Vintasoft.Imaging.Dicom.Mpr.MprPlanarSlice sagittalSlice = mprImage.CreateSagittalSlice(mprImage.XLength / 2.0);
        // render the sagittal slice
        sagittalSliceImage = mprImage.RenderSlice(sagittalSlice);
    }




    Here is screenshot of sagittal slice in MPR rendering mode:
    Screenshot of sagittal slice in MPR rendering mode

    Here is screenshot of sagittal slice in MIP rendering mode:
    Screenshot of sagittal slice in MIP rendering mode

    Here is screenshot of sagittal slice in MinIP rendering mode:
    Screenshot of sagittal slice in MinIP rendering mode

    Here is screenshot of sagittal slice in Avg rendering mode:
    Screenshot of sagittal slice in Avg rendering mode

    Here is screenshot of sagittal slice in Preview3D rendering mode:
    Screenshot of sagittal slice in Preview3D rendering mode
