    WpfAnnotationViewController Class
    In This Topic
    Stores one-to-one links between one AnnotationDataCollection from the AnnotationDataController and one WpfAnnotationViewCollection.

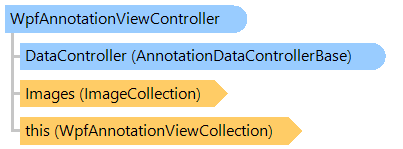

    Object Model
    ImageCollection AnnotationDataControllerBase WpfAnnotationViewCollection WpfAnnotationViewController
    Syntax
    'Declaration

    <DefaultMemberAttribute("Item")>
    Public Class WpfAnnotationViewController


    [DefaultMember("Item")]
    public class WpfAnnotationViewController


    [DefaultMember("Item")]
    public __gc class WpfAnnotationViewController


    [DefaultMember("Item")]
    public ref class WpfAnnotationViewController


    Example

    This C#/VB.NET code shows how to burn annotations on image.


    ' Create the image collection and add images to collection.
    Dim imageCollection As New Vintasoft.Imaging.ImageCollection()
    imageCollection.Add("D:\Images\AutoContrast.jpg")
    imageCollection.Add("D:\Images\AutoColors.jpg")

    ' Create annotation controllers associated with image collection.
    Dim annotationDataController As New Vintasoft.Imaging.Annotation.AnnotationDataController(imageCollection)
    Dim wpfAnnotationViewController As New Vintasoft.Imaging.Annotation.Wpf.UI.WpfAnnotationViewController(annotationDataController)

    ' Create a data of rectangle annotation.
    Dim rectangleAnnotationData As New Vintasoft.Imaging.Annotation.RectangleAnnotationData()
    rectangleAnnotationData.Location = New System.Drawing.PointF(340, 150)
    rectangleAnnotationData.Size = New System.Drawing.SizeF(220, 150)
    ' Create a view of rectangle annotation.
    Dim wpfRectangleAnnotationView As New Vintasoft.Imaging.Annotation.Wpf.UI.WpfRectangleAnnotationView(rectangleAnnotationData)
    ' Add the rectangle annotation to the annotation controller.
    wpfAnnotationViewController(0).Add(wpfRectangleAnnotationView)

    ' Burn annotation collection on the first image.
    wpfAnnotationViewController.BurnAnnotationCollectionOnImage(0)

    ' Save image collection to TIFF file.
    imageCollection.SaveSync("D:\ImageCollection.tif", True)



    // Create the image collection and add images to collection.
    Vintasoft.Imaging.ImageCollection imageCollection =
        new Vintasoft.Imaging.ImageCollection();
    imageCollection.Add(@"D:\Images\AutoContrast.jpg");
    imageCollection.Add(@"D:\Images\AutoColors.jpg");

    // Create annotation controllers associated with image collection.
    Vintasoft.Imaging.Annotation.AnnotationDataController annotationDataController =
        new Vintasoft.Imaging.Annotation.AnnotationDataController(imageCollection);
    Vintasoft.Imaging.Annotation.Wpf.UI.WpfAnnotationViewController wpfAnnotationViewController =
        new Vintasoft.Imaging.Annotation.Wpf.UI.WpfAnnotationViewController(annotationDataController);

    // Create a data of rectangle annotation.
    Vintasoft.Imaging.Annotation.RectangleAnnotationData rectangleAnnotationData =
        new Vintasoft.Imaging.Annotation.RectangleAnnotationData();
    rectangleAnnotationData.Location = new System.Drawing.PointF(340, 150);
    rectangleAnnotationData.Size = new System.Drawing.SizeF(220, 150);
    // Create a view of rectangle annotation.
    Vintasoft.Imaging.Annotation.Wpf.UI.WpfRectangleAnnotationView wpfRectangleAnnotationView =
        new Vintasoft.Imaging.Annotation.Wpf.UI.WpfRectangleAnnotationView(rectangleAnnotationData);
    // Add the rectangle annotation to the annotation controller.
    wpfAnnotationViewController[0].Add(wpfRectangleAnnotationView);

    // Burn annotation collection on the first image.
    wpfAnnotationViewController.BurnAnnotationCollectionOnImage(0);

    // Save image collection to TIFF file.
    imageCollection.SaveSync(@"D:\ImageCollection.tif", true);



    Inheritance Hierarchy

    System.Object
       Vintasoft.Imaging.Annotation.Wpf.UI.WpfAnnotationViewController

    Requirements

    Target Platforms: .NET 8; .NET 7; .NET 6; .NET Framework 4.8, 4.7, 4.6, 4.5, 4.0, 3.5
