    RectangleAnnotationData Class
    In This Topic
    Contains information about the annotation that displays rectangle.

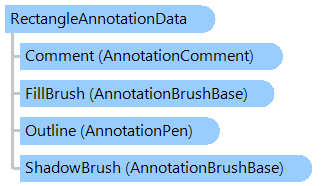

    Object Model
    AnnotationBrushBase AnnotationBrushBase AnnotationPen AnnotationComment RectangleAnnotationData
    Syntax
    'Declaration

    <SerializableAttribute()>
    Public Class RectangleAnnotationData
       Inherits AnnotationData


    [Serializable()]
    public class RectangleAnnotationData : AnnotationData


    [Serializable()]
    public __gc class RectangleAnnotationData : public AnnotationData*


    [Serializable()]
    public ref class RectangleAnnotationData : public AnnotationData^


    Remarks

    Square annotation can be constructed from rectangle annotation if the Symmetry property will be set to true.

    Example

    Here is an example that shows how to create custom rectangular annotation that holds GPS data as string value:


    ''' <summary>
    ''' Contains information about the annotation that displays rectangle and holds GPS data as string.
    ''' </summary>
    ''' <remarks>
    ''' This class shows how to create annotation data with custom property.
    ''' </remarks>
    Public Class GpsRectangleAnnotationData
        Inherits Vintasoft.Imaging.Annotation.RectangleAnnotationData

        #Region "Constructors"

        ''' <summary>
        ''' Initializes a new instance of the <see cref="GpsRectangleAnnotationData"/> class.
        ''' </summary>
        Public Sub New()
            MyBase.New()
        End Sub

        ''' <summary>
        ''' Initializes a new instance of the <see cref="GpsRectangleAnnotationData"/> class.
        ''' </summary>
        ''' <param name="info">The SerializationInfo to populate with data.</param>
        ''' <param name="context">The destination for this serialization.</param>
        Public Sub New(info As System.Runtime.Serialization.SerializationInfo, context As System.Runtime.Serialization.StreamingContext)
            MyBase.New(info, context)
            GpsData = info.GetString("GpsData")
        End Sub

        #End Region



        #Region "Properties"

        Private _gpsData As String = ""
        ''' <summary>
        ''' Gets or sets information about GPS data.
        ''' </summary>
        ''' <value>
        ''' Default value is empty.
        ''' </value>
        <System.ComponentModel.Description("Information GPS data.")> _
        <System.ComponentModel.DefaultValue("")> _
        Public Property GpsData() As String
            Get
                Return _gpsData
            End Get
            Set
                If value Is Nothing Then
                    value = ""
                End If
                If _gpsData <> value Then
                    Dim changingArgs As New Vintasoft.Imaging.ObjectPropertyChangingEventArgs("GpsData", GpsData, value)
                    ' if action is not canceled
                    If OnPropertyChanging(changingArgs) Then
                        _gpsData = DirectCast(changingArgs.NewValue, String)
                        OnPropertyChanged(changingArgs.ToChangedEventArgs())
                    End If
                End If
            End Set
        End Property

        #End Region



        #Region "Methods"

        ''' <summary>
        ''' Populates a SerializationInfo with the data needed to serialize the target object.
        ''' </summary>
        ''' <param name="info">The SerializationInfo to populate with data.</param>
        ''' <param name="context">The destination for this serialization.</param>
        Public Overrides Sub GetObjectData(info As System.Runtime.Serialization.SerializationInfo, context As System.Runtime.Serialization.StreamingContext)
            MyBase.GetObjectData(info, context)
            info.AddValue("GpsData", GpsData)
        End Sub

        ''' <summary>
        ''' Copies the state of the current object to the target object.
        ''' </summary>
        ''' <param name="target">Object to copy the state of the current object to.</param>
        Public Overrides Sub CopyTo(target As Vintasoft.Imaging.Annotation.AnnotationData)
            Dim typedTarget As GpsRectangleAnnotationData = DirectCast(target, GpsRectangleAnnotationData)

            MyBase.CopyTo(typedTarget)

            typedTarget.GpsData = GpsData
        End Sub

        ''' <summary>
        ''' Creates a new object that is a copy of the current
        ''' <see cref="GpsRectangleAnnotationData" /> instance.
        ''' </summary>
        ''' <returns>
        ''' A new object that is a copy of this
        ''' <see cref="GpsRectangleAnnotationData" /> instance.
        ''' </returns>
        Public Overrides Function Clone() As Object
            Dim result As New GpsRectangleAnnotationData()
            Me.CopyTo(result)
            Return result
        End Function

        #End Region

    End Class



    /// <summary>
    /// Contains information about the annotation that displays rectangle and holds GPS data as string.
    /// </summary>
    /// <remarks>
    /// This class shows how to create annotation data with custom property.
    /// </remarks>
    public class GpsRectangleAnnotationData : Vintasoft.Imaging.Annotation.RectangleAnnotationData
    {

        #region Constructors

        /// <summary>
        /// Initializes a new instance of the <see cref="GpsRectangleAnnotationData"/> class.
        /// </summary>
        public GpsRectangleAnnotationData()
            : base()
        {
        }

        /// <summary>
        /// Initializes a new instance of the <see cref="GpsRectangleAnnotationData"/> class.
        /// </summary>
        /// <param name="info">The SerializationInfo to populate with data.</param>
        /// <param name="context">The destination for this serialization.</param>
        public GpsRectangleAnnotationData(System.Runtime.Serialization.SerializationInfo info,
            System.Runtime.Serialization.StreamingContext context)
            : base(info, context)
        {
            GpsData = info.GetString("GpsData");
        }

        #endregion



        #region Properties

        string _gpsData = "";
        /// <summary>
        /// Gets or sets information about GPS data.
        /// </summary>
        /// <value>
        /// Default value is empty.
        /// </value>
        [System.ComponentModel.Description("Information GPS data.")]
        [System.ComponentModel.DefaultValue("")]
        public string GpsData
        {
            get
            {
                return _gpsData;
            }
            set
            {
                if (value == null)
                    value = "";
                if (_gpsData != value)
                {
                    Vintasoft.Imaging.ObjectPropertyChangingEventArgs changingArgs =
                        new Vintasoft.Imaging.ObjectPropertyChangingEventArgs("GpsData", GpsData, value);
                    // if action is not canceled
                    if (OnPropertyChanging(changingArgs))
                    {
                        _gpsData = (string)changingArgs.NewValue;
                        OnPropertyChanged(changingArgs.ToChangedEventArgs());
                    }
                }
            }
        }

        #endregion



        #region Methods

        /// <summary>
        /// Populates a SerializationInfo with the data needed to serialize the target object.
        /// </summary>
        /// <param name="info">The SerializationInfo to populate with data.</param>
        /// <param name="context">The destination for this serialization.</param>
        public override void GetObjectData(System.Runtime.Serialization.SerializationInfo info,
            System.Runtime.Serialization.StreamingContext context)
        {
            base.GetObjectData(info, context);
            info.AddValue("GpsData", GpsData);
        }

        /// <summary>
        /// Copies the state of the current object to the target object.
        /// </summary>
        /// <param name="target">Object to copy the state of the current object to.</param>
        public override void CopyTo(Vintasoft.Imaging.Annotation.AnnotationData target)
        {
            GpsRectangleAnnotationData typedTarget = (GpsRectangleAnnotationData)target;

            base.CopyTo(typedTarget);

            typedTarget.GpsData = GpsData;
        }

        /// <summary>
        /// Creates a new object that is a copy of the current
        /// <see cref="GpsRectangleAnnotationData" /> instance.
        /// </summary>
        /// <returns>
        /// A new object that is a copy of this
        /// <see cref="GpsRectangleAnnotationData" /> instance.
        /// </returns>
        public override object Clone()
        {
            GpsRectangleAnnotationData result = new GpsRectangleAnnotationData();
            this.CopyTo(result);
            return result;
        }

        #endregion

    }



    Inheritance Hierarchy
    Requirements

    Target Platforms: .NET 8; .NET 7; .NET 6; .NET Framework 4.8, 4.7, 4.6, 4.5, 4.0, 3.5
