    MprDicomImagePlanarSlice Class
    In This Topic
    Represents MPR planar slice, which is obtained from DICOM frame.

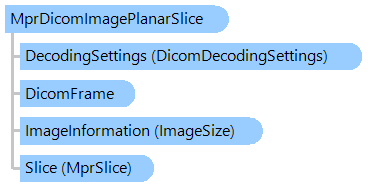

    Object Model
    DicomFrame DicomDecodingSettings MprSlice ImageInfo MprDicomImagePlanarSlice
    Syntax
    'Declaration

    Public Class MprDicomImagePlanarSlice
       Inherits MprImagePlanarSlice


    public class MprDicomImagePlanarSlice : MprImagePlanarSlice


    public __gc class MprDicomImagePlanarSlice : public MprImagePlanarSlice*


    public ref class MprDicomImagePlanarSlice : public MprImagePlanarSlice^


    Example

    This C#/VB.NET code shows how to create the source data for DICOM MPR.


    ''' <summary>
    ''' Creates the <see cref="Vintasoft.Imaging.Dicom.Mpr.MprDicomImagePlanarSlice"/> for DICOM MPR.
    ''' </summary>
    ''' <param name="sourceDicomFiles">The source DICOM files.</param>
    ''' <returns>
    ''' The source data for DICOM MPR.
    ''' </returns>
    ''' <exception cref="System.ArgumentNullException">Thrown if <i>sourceDicomFiles</i> is <b>null</b>.</exception>
    Public Shared Function CreateSourceDicomFrames(ParamArray sourceDicomFiles As Vintasoft.Imaging.Codecs.ImageFiles.Dicom.DicomFile()) As Vintasoft.Imaging.Dicom.Mpr.MprDicomImagePlanarSlice()
        ' if source DICOM files are not specified
        If sourceDicomFiles Is Nothing Then
            Throw New System.ArgumentNullException()
        End If

        ' a list of source MPR slices
        Dim sourceMprSlices As New System.Collections.Generic.List(Of Vintasoft.Imaging.Dicom.Mpr.MprDicomImagePlanarSlice)()

        ' for each DICOM file
        For Each sourceDicomFile As Vintasoft.Imaging.Codecs.ImageFiles.Dicom.DicomFile In sourceDicomFiles
            ' for each DICOM frame
            For Each frame As Vintasoft.Imaging.Codecs.ImageFiles.Dicom.DicomFrame In sourceDicomFile.Pages
                ' create MPR slice from DICOM frame
                sourceMprSlices.Add(New Vintasoft.Imaging.Dicom.Mpr.MprDicomImagePlanarSlice(frame))
            Next
        Next

        Return sourceMprSlices.ToArray()
    End Function



    /// <summary>
    /// Creates the <see cref="Vintasoft.Imaging.Dicom.Mpr.MprDicomImagePlanarSlice"/> for DICOM MPR.
    /// </summary>
    /// <param name="sourceDicomFiles">The source DICOM files.</param>
    /// <returns>
    /// The source data for DICOM MPR.
    /// </returns>
    /// <exception cref="System.ArgumentNullException">Thrown if <i>sourceDicomFiles</i> is <b>null</b>.</exception>
    public static Vintasoft.Imaging.Dicom.Mpr.MprDicomImagePlanarSlice[] CreateSourceDicomFrames(
        params Vintasoft.Imaging.Codecs.ImageFiles.Dicom.DicomFile[] sourceDicomFiles)
    {
        // if source DICOM files are not specified
        if (sourceDicomFiles == null)
            throw new System.ArgumentNullException();

        // a list of source MPR slices
        System.Collections.Generic.List<Vintasoft.Imaging.Dicom.Mpr.MprDicomImagePlanarSlice> sourceMprSlices =
            new System.Collections.Generic.List<Vintasoft.Imaging.Dicom.Mpr.MprDicomImagePlanarSlice>();

        // for each DICOM file
        foreach (Vintasoft.Imaging.Codecs.ImageFiles.Dicom.DicomFile sourceDicomFile in sourceDicomFiles)
        {
            // for each DICOM frame
            foreach (Vintasoft.Imaging.Codecs.ImageFiles.Dicom.DicomFrame frame in sourceDicomFile.Pages)
            {
                // create MPR slice from DICOM frame
                sourceMprSlices.Add(new Vintasoft.Imaging.Dicom.Mpr.MprDicomImagePlanarSlice(frame));
            }
        }

        return sourceMprSlices.ToArray();
    }



    Inheritance Hierarchy

    System.Object
       Vintasoft.Imaging.Dicom.Mpr.MprImageSlice
          Vintasoft.Imaging.Dicom.Mpr.MprImagePlanarSlice
             Vintasoft.Imaging.Dicom.Mpr.MprDicomImagePlanarSlice

    Requirements

    Target Platforms: .NET 8; .NET 7; .NET 6; .NET Framework 4.8, 4.7, 4.6, 4.5, 4.0, 3.5
