    MprImage Class
    In This Topic
    Provides the ability to reconstruct images in planar or curvilinear planes from the series of 2D DICOM images.

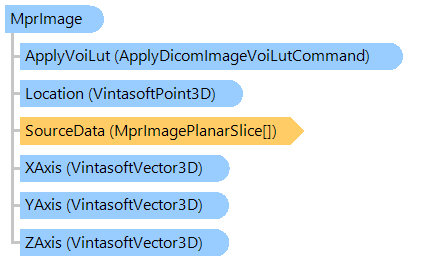

    Object Model
    ApplyDicomImageVoiLutCommand MprImagePlanarSlice VintasoftPoint3D VintasoftVector3D VintasoftVector3D VintasoftVector3D MprImage
    Syntax
    'Declaration

    Public Class MprImage


    public class MprImage


    public __gc class MprImage


    public ref class MprImage


    Remarks

    Main features:


    The MPR (multiplanar reconstruction) provides the ability to reconstruct images in planar planes (coronal, sagittal, axial or oblique) and curvilinear planes from the series of 2D images.
    The MPR image can be created only from images series, which meets the following requirements:
    • the planes of all images in the series must be parallel
    • the distance between neighboring images must not exceed the SliceIntervalMaxDelta

    The MPR image stores reconstructed data set as the grayscale values with 16-bit precision.
    The MPR image uses two coordinate spaces:
    • World space - 3D coordinate system in which the location and directions of source DICOM images are specified. The coordinate system uses millimeters as unit of measure.
    • MPR Image space - 3D coordinate system in which the location and directions are specified relative to the location and directions of source DICOM images. The coordinate system uses millimeters as unit of measure.
    • Slice space - 2D coordinate system, which defines planar or curvilinear slice of MPR Image space. The coordinate system uses millimeters as unit of measure. The coordinate system's center equals to the slice location (Location) in MPR Image space.

    Example

    This C#/VB.NET code shows how to create, initialize and synchronously fill DICOM MPR image.


    ''' <summary>
    ''' Creates the initialized <see cref="Vintasoft.Imaging.Dicom.Mpr.MprImage"/>
    ''' from <see cref="Vintasoft.Imaging.Codecs.ImageFiles.Dicom.DicomFile"/> array.
    ''' </summary>
    ''' <param name="sourceDicomFiles">The source DICOM files.</param>
    ''' <returns>
    ''' The initialized <see cref="Vintasoft.Imaging.Dicom.Mpr.MprImage"/>.
    ''' </returns>
    ''' <exception cref="System.ArgumentNullException">Thrown if <i>sourceDicomFiles</i> is <b>null</b>.</exception>
    Public Shared Function CreateInitAndSyncFill(ParamArray sourceDicomFiles As Vintasoft.Imaging.Codecs.ImageFiles.Dicom.DicomFile()) As Vintasoft.Imaging.Dicom.Mpr.MprImage
        ' if source DICOM files are not specified
        If sourceDicomFiles Is Nothing Then
            Throw New System.ArgumentNullException()
        End If

        ' a list of source MPR slices
        Dim sourceMprSlices As New System.Collections.Generic.List(Of Vintasoft.Imaging.Dicom.Mpr.MprDicomImagePlanarSlice)()

        ' for each DICOM file
        For Each sourceDicomFile As Vintasoft.Imaging.Codecs.ImageFiles.Dicom.DicomFile In sourceDicomFiles
            ' for each DICOM frame
            For Each sourceDicomFrame As Vintasoft.Imaging.Codecs.ImageFiles.Dicom.DicomFrame In sourceDicomFile.Pages
                ' create MPR slice from DICOM frame
                sourceMprSlices.Add(New Vintasoft.Imaging.Dicom.Mpr.MprDicomImagePlanarSlice(sourceDicomFrame))
            Next
        Next

        ' create the MPR image
        Dim mprImage As New Vintasoft.Imaging.Dicom.Mpr.MprImage()

        ' initialize the source data
        mprImage.Initialize(sourceMprSlices.ToArray())

        ' fill the MPR image data synchronously
        mprImage.FillDataSync()

        Return mprImage
    End Function



    /// <summary>
    /// Creates the initialized <see cref="Vintasoft.Imaging.Dicom.Mpr.MprImage"/>
    /// from <see cref="Vintasoft.Imaging.Codecs.ImageFiles.Dicom.DicomFile"/> array.
    /// </summary>
    /// <param name="sourceDicomFiles">The source DICOM files.</param>
    /// <returns>
    /// The initialized <see cref="Vintasoft.Imaging.Dicom.Mpr.MprImage"/>.
    /// </returns>
    /// <exception cref="System.ArgumentNullException">Thrown if <i>sourceDicomFiles</i> is <b>null</b>.</exception>
    public static Vintasoft.Imaging.Dicom.Mpr.MprImage CreateInitAndSyncFill(
        params Vintasoft.Imaging.Codecs.ImageFiles.Dicom.DicomFile[] sourceDicomFiles)
    {
        // if source DICOM files are not specified
        if (sourceDicomFiles == null)
            throw new System.ArgumentNullException();

        // a list of source MPR slices
        System.Collections.Generic.List<Vintasoft.Imaging.Dicom.Mpr.MprDicomImagePlanarSlice> sourceMprSlices =
            new System.Collections.Generic.List<Vintasoft.Imaging.Dicom.Mpr.MprDicomImagePlanarSlice>();

        // for each DICOM file
        foreach (Vintasoft.Imaging.Codecs.ImageFiles.Dicom.DicomFile sourceDicomFile in sourceDicomFiles)
        {
            // for each DICOM frame
            foreach (Vintasoft.Imaging.Codecs.ImageFiles.Dicom.DicomFrame sourceDicomFrame in sourceDicomFile.Pages)
            {
                // create MPR slice from DICOM frame
                sourceMprSlices.Add(new Vintasoft.Imaging.Dicom.Mpr.MprDicomImagePlanarSlice(sourceDicomFrame));
            }
        }

        // create the MPR image
        Vintasoft.Imaging.Dicom.Mpr.MprImage mprImage = new Vintasoft.Imaging.Dicom.Mpr.MprImage();

        // initialize the source data
        mprImage.Initialize(sourceMprSlices.ToArray());

        // fill the MPR image data synchronously
        mprImage.FillDataSync();

        return mprImage;
    }



    Inheritance Hierarchy

    System.Object
       Vintasoft.Imaging.Dicom.Mpr.MprImage

    Requirements

    Target Platforms: .NET 8; .NET 7; .NET 6; .NET Framework 4.8, 4.7, 4.6, 4.5, 4.0, 3.5
