    OcrPreprocessingCommand Class
    In This Topic
    Command that executes typical sequence of image processing commands necessary to prepare an image for optical character recognition.

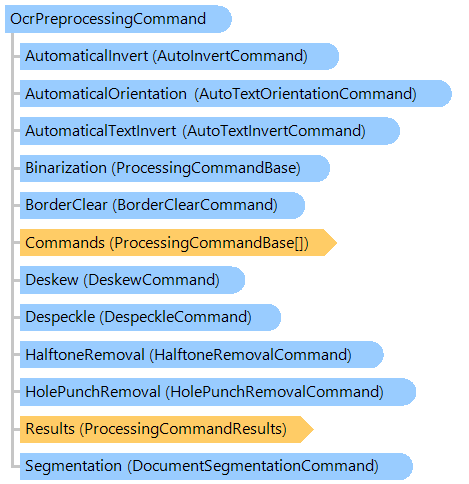

    Object Model
    ProcessingCommandBase ProcessingCommandBase AutoInvertCommand AutoTextInvertCommand HalftoneRemovalCommand BorderClearCommand DespeckleCommand DeskewCommand HolePunchRemovalCommand AutoTextOrientationCommand DocumentSegmentationCommand ProcessingCommandResults OcrPreprocessingCommand
    Syntax
    'Declaration

    Public Class OcrPreprocessingCommand
       Inherits Vintasoft.Imaging.ImageProcessing.CompositeCommand


    public class OcrPreprocessingCommand : Vintasoft.Imaging.ImageProcessing.CompositeCommand


    public __gc class OcrPreprocessingCommand : public Vintasoft.Imaging.ImageProcessing.CompositeCommand*


    public ref class OcrPreprocessingCommand : public Vintasoft.Imaging.ImageProcessing.CompositeCommand^


    Remarks

    Standard sequence of commands: Binarization, AutoInvert, HalftoneRemoval, BorderClear, Deskew, HolePunchRemoval, Despeckle, AutoTextOrientation, Segmentation.

    Example

    This C#/VB.NET code shows how to preprocess and recognize an image.


    Class OcrPreprocessingCommandExample
        ' Required assemblies to run this code:
        ' Vintasoft.Imaging.dll, Vintasoft.Imaging.Ocr.dll, Vintasoft.Imaging.Ocr.Tesseract.dll,
        ' Vintasoft.Imaging.DocCleanup.dll
        Public Shared Sub PreprocessAndOcrImages(language As Vintasoft.Imaging.Ocr.OcrLanguage, filename As String)
            ' load image(s)
            Dim images As New Vintasoft.Imaging.ImageCollection()
            images.Add(filename)

            System.Console.WriteLine("Create Tesseract OCR engine...")
            Using tesseractOcr As New Vintasoft.Imaging.Ocr.Tesseract.TesseractOcr()
                ' create OCR engine manager
                Dim engineManager As New Vintasoft.Imaging.Ocr.OcrEngineManager(tesseractOcr)

                Dim settings As New Vintasoft.Imaging.Ocr.OcrEngineSettings(language)

                ' foreach image
                For Each image As Vintasoft.Imaging.VintasoftImage In images
                    System.Console.WriteLine("Preprocess image:")
                    System.Console.WriteLine("BorderClear, Despeckle, Deskew, Segmentation...")
                    Dim preprocessing As New Vintasoft.Imaging.ImageProcessing.Document.OcrPreprocessingCommand()
                    preprocessing.Binarization = Nothing
                    preprocessing.ExecuteInPlace(image)

                    System.Console.WriteLine("Recognize image...")
                    Dim page As Vintasoft.Imaging.Ocr.Results.OcrPage = engineManager.Recognize(image, settings, preprocessing.SegmentationTextRegions)

                    System.Console.WriteLine("Page Text:")
                    System.Console.WriteLine(page.GetText())
                    System.Console.WriteLine()
                Next
            End Using

            ' free resources
            images.ClearAndDisposeItems()
            images.Dispose()
        End Sub
    End Class



    class OcrPreprocessingCommandExample
    {
        // Required assemblies to run this code:
        // Vintasoft.Imaging.dll, Vintasoft.Imaging.Ocr.dll, Vintasoft.Imaging.Ocr.Tesseract.dll,
        // Vintasoft.Imaging.DocCleanup.dll
        public static void PreprocessAndOcrImages(
            Vintasoft.Imaging.Ocr.OcrLanguage language, string filename)
        {
            // load image(s)
            Vintasoft.Imaging.ImageCollection images =
                new Vintasoft.Imaging.ImageCollection();
            images.Add(filename);

            System.Console.WriteLine("Create Tesseract OCR engine...");
            using (Vintasoft.Imaging.Ocr.Tesseract.TesseractOcr tesseractOcr =
                new Vintasoft.Imaging.Ocr.Tesseract.TesseractOcr())
            {
                // create OCR engine manager
                Vintasoft.Imaging.Ocr.OcrEngineManager engineManager =
                    new Vintasoft.Imaging.Ocr.OcrEngineManager(tesseractOcr);

                Vintasoft.Imaging.Ocr.OcrEngineSettings settings =
                    new Vintasoft.Imaging.Ocr.OcrEngineSettings(language);

                // foreach image
                foreach (Vintasoft.Imaging.VintasoftImage image in images)
                {
                    System.Console.WriteLine("Preprocess image:");
                    System.Console.WriteLine("BorderClear, Despeckle, Deskew, Segmentation...");
                    Vintasoft.Imaging.ImageProcessing.Document.OcrPreprocessingCommand preprocessing =
                        new Vintasoft.Imaging.ImageProcessing.Document.OcrPreprocessingCommand();
                    preprocessing.Binarization = null;
                    preprocessing.ExecuteInPlace(image);

                    System.Console.WriteLine("Recognize image...");
                    Vintasoft.Imaging.Ocr.Results.OcrPage page =
                        engineManager.Recognize(image, settings, preprocessing.SegmentationTextRegions);

                    System.Console.WriteLine("Page Text:");
                    System.Console.WriteLine(page.GetText());
                    System.Console.WriteLine();
                }
            }

            // free resources
            images.ClearAndDisposeItems();
            images.Dispose();
        }
    }



    Inheritance Hierarchy

    System.Object
       Vintasoft.Imaging.ImageProcessing.ProcessingCommandBase
          Vintasoft.Imaging.ImageProcessing.CompositeCommand
             Vintasoft.Imaging.ImageProcessing.Document.OcrPreprocessingCommand

    Requirements

    Target Platforms: .NET 8; .NET 7; .NET 6; .NET Framework 4.8, 4.7, 4.6, 4.5, 4.0, 3.5
