    KeyLineRecognizerCommand Class
    In This Topic
    Recognizes key zones, based on lines, on an image.

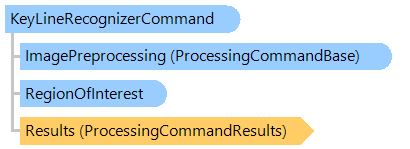

    Object Model
    ProcessingCommandBase RegionOfInterest ProcessingCommandResults KeyLineRecognizerCommand
    Syntax
    'Declaration

    Public Class KeyLineRecognizerCommand
       Inherits KeyZoneRecognizerCommand


    public class KeyLineRecognizerCommand : KeyZoneRecognizerCommand


    public __gc class KeyLineRecognizerCommand : public KeyZoneRecognizerCommand*


    public ref class KeyLineRecognizerCommand : public KeyZoneRecognizerCommand^


    Example

    This C#/VB.NET code shows how to identify a document image using algorithm that creates an image imprint based on lines.


    ''' <summary>
    ''' Identifies the image using key lines.
    ''' </summary>
    ''' <param name="templateImages">The template images.</param>
    ''' <param name="testImage">The test image.</param>
    ''' <returns>Result of template matching.</returns>
    Public Shared Function IdentifyUsingLines(templateImages As Vintasoft.Imaging.VintasoftImage(), testImage As Vintasoft.Imaging.VintasoftImage) As Vintasoft.Imaging.FormsProcessing.TemplateMatching.TemplateMatchingResult
        ' create a recognizer
        Dim lineRecognizerCommand As New Vintasoft.Imaging.FormsProcessing.TemplateMatching.KeyLineRecognizerCommand()
        ' set units of measure
        lineRecognizerCommand.UnitOfMeasure = Vintasoft.Imaging.UnitOfMeasure.Pixels
        ' set max length of line
        lineRecognizerCommand.MaxLength = 2000
        ' create a template matching command
        Dim templateMatchingCommand As New Vintasoft.Imaging.FormsProcessing.TemplateMatching.TemplateMatchingCommand()
        ' set imprint generator based on recognizer
        templateMatchingCommand.ImageImprintGenerator = New Vintasoft.Imaging.FormsProcessing.TemplateMatching.ImageImprintGeneratorCommand(lineRecognizerCommand)
        ' add template images
        templateMatchingCommand.TemplateImages.AddRange(templateImages)
        ' execute template matching
        templateMatchingCommand.ExecuteInPlace(testImage)
        ' return result
        Return templateMatchingCommand.Result
    End Function



    /// <summary>
    /// Identifies the image using key lines.
    /// </summary>
    /// <param name="templateImages">The template images.</param>
    /// <param name="testImage">The test image.</param>
    /// <returns>Result of template matching.</returns>
    public static Vintasoft.Imaging.FormsProcessing.TemplateMatching.TemplateMatchingResult IdentifyUsingLines(
        Vintasoft.Imaging.VintasoftImage[] templateImages,
        Vintasoft.Imaging.VintasoftImage testImage)
    {
        // create a recognizer
        Vintasoft.Imaging.FormsProcessing.TemplateMatching.KeyLineRecognizerCommand lineRecognizerCommand =
            new Vintasoft.Imaging.FormsProcessing.TemplateMatching.KeyLineRecognizerCommand();
        // set units of measure
        lineRecognizerCommand.UnitOfMeasure = Vintasoft.Imaging.UnitOfMeasure.Pixels;
        // set max length of line
        lineRecognizerCommand.MaxLength = 2000;
        // create a template matching command
        Vintasoft.Imaging.FormsProcessing.TemplateMatching.TemplateMatchingCommand templateMatchingCommand =
            new Vintasoft.Imaging.FormsProcessing.TemplateMatching.TemplateMatchingCommand();
        // set imprint generator based on recognizer
        templateMatchingCommand.ImageImprintGenerator =
            new Vintasoft.Imaging.FormsProcessing.TemplateMatching.ImageImprintGeneratorCommand(lineRecognizerCommand);
        // add template images
        templateMatchingCommand.TemplateImages.AddRange(templateImages);
        // execute template matching
        templateMatchingCommand.ExecuteInPlace(testImage);
        // return result
        return templateMatchingCommand.Result;
    }



    Inheritance Hierarchy

    System.Object
       Vintasoft.Imaging.ImageProcessing.ProcessingCommandBase
          Vintasoft.Imaging.ImageProcessing.ProcessingCommandWithRegion
             Vintasoft.Imaging.FormsProcessing.TemplateMatching.KeyZoneRecognizerCommand
                Vintasoft.Imaging.FormsProcessing.TemplateMatching.KeyLineRecognizerCommand

    Requirements

    Target Platforms: .NET 8; .NET 7; .NET 6; .NET Framework 4.8, 4.7, 4.6, 4.5, 4.0, 3.5
