    PdfPolylineAnnotation Class
    In This Topic
    Represents a PDF annotation that displays a polyline.

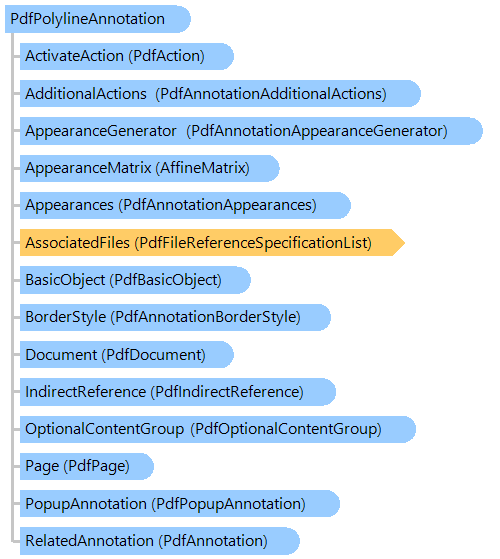

    Object Model
    PdfPopupAnnotation PdfAnnotation PdfFileReferenceSpecificationList PdfAnnotationAppearanceGenerator PdfOptionalContentGroup PdfPage PdfAnnotationBorderStyle AffineMatrix PdfAction PdfAnnotationAppearances PdfAnnotationAdditionalActions PdfDocument PdfIndirectReference PdfBasicObject PdfPolylineAnnotation
    Syntax
    'Declaration

    Public NotInheritable Class PdfPolylineAnnotation
       Inherits PdfPolygonalAnnotation


    public sealed class PdfPolylineAnnotation : PdfPolygonalAnnotation


    public __gc __sealed class PdfPolylineAnnotation : public PdfPolygonalAnnotation*


    public ref class PdfPolylineAnnotation sealed : public PdfPolygonalAnnotation^


    Example

    Here is an example that shows how to create a PDF polyline annotation:


    ''' <summary>
    ''' Creates the PDF documenet with polyline annotation.
    ''' </summary>
    ''' <param name="outputPdfFilename">The output PDF filename.</param>
    Public Shared Sub CreatePdfPolylineAnnotation(outputPdfFilename As String)
        Using document As New Vintasoft.Imaging.Pdf.PdfDocument(outputPdfFilename, Vintasoft.Imaging.Pdf.PdfFormat.Pdf_14)
            Dim page As Vintasoft.Imaging.Pdf.Tree.PdfPage

            ' Add new page
            page = document.Pages.Add(Vintasoft.Imaging.PaperSizeKind.A4)
            page.Annotations = New Vintasoft.Imaging.Pdf.Tree.Annotations.PdfAnnotationList(document)
            Dim annotationRectangle As System.Drawing.RectangleF = page.MediaBox
            annotationRectangle.Inflate(-200, -300)

            ' Points
            Dim random As New System.Random()
            Dim polylgonalAnnotationPoints As System.Drawing.PointF() = New System.Drawing.PointF(9) {}
            polylgonalAnnotationPoints(0) = annotationRectangle.Location
            For i As Integer = 1 To polylgonalAnnotationPoints.Length - 1
                polylgonalAnnotationPoints(i) = New System.Drawing.PointF(annotationRectangle.X + annotationRectangle.Width * CSng(random.NextDouble()), annotationRectangle.Y + annotationRectangle.Height * CSng(random.NextDouble()))
            Next

            ' Polyline annotation
            Dim polyline As New Vintasoft.Imaging.Pdf.Tree.Annotations.PdfPolylineAnnotation(page)
            polyline.Rectangle = System.Drawing.RectangleF.Inflate(annotationRectangle, 30, 30)
            polyline.Points = polylgonalAnnotationPoints
            polyline.BorderWidth = 3
            polyline.InteriorColor = System.Drawing.Color.Red
            polyline.Color = System.Drawing.Color.Green
            polyline.StartPointLineEndingStyle = Vintasoft.Imaging.Pdf.Tree.Annotations.PdfAnnotationLineEndingStyle.ClosedArrow
            polyline.EndPointLineEndingStyle = Vintasoft.Imaging.Pdf.Tree.Annotations.PdfAnnotationLineEndingStyle.Diamond
            polyline.UpdateAppearance()
            page.Annotations.Add(polyline)

            document.SaveChanges()
        End Using
    End Sub



    /// <summary>
    /// Creates the PDF documenet with polyline annotation.
    /// </summary>
    /// <param name="outputPdfFilename">The output PDF filename.</param>
    public static void CreatePdfPolylineAnnotation(string outputPdfFilename)
    {
        using (Vintasoft.Imaging.Pdf.PdfDocument document = new Vintasoft.Imaging.Pdf.PdfDocument(
            outputPdfFilename, Vintasoft.Imaging.Pdf.PdfFormat.Pdf_14))
        {
            Vintasoft.Imaging.Pdf.Tree.PdfPage page;

            // Add new page
            page = document.Pages.Add(Vintasoft.Imaging.PaperSizeKind.A4);
            page.Annotations = new Vintasoft.Imaging.Pdf.Tree.Annotations.PdfAnnotationList(document);
            System.Drawing.RectangleF annotationRectangle = page.MediaBox;
            annotationRectangle.Inflate(-200, -300);

            // Points
            System.Random random = new System.Random();
            System.Drawing.PointF[] polylgonalAnnotationPoints = new System.Drawing.PointF[10];
            polylgonalAnnotationPoints[0] = annotationRectangle.Location;
            for (int i = 1; i < polylgonalAnnotationPoints.Length; i++)
            {
                polylgonalAnnotationPoints[i] = new System.Drawing.PointF(
                    annotationRectangle.X + annotationRectangle.Width * (float)random.NextDouble(),
                    annotationRectangle.Y + annotationRectangle.Height * (float)random.NextDouble());
            }

            // Polyline annotation
            Vintasoft.Imaging.Pdf.Tree.Annotations.PdfPolylineAnnotation polyline =
                new Vintasoft.Imaging.Pdf.Tree.Annotations.PdfPolylineAnnotation(page);
            polyline.Rectangle = System.Drawing.RectangleF.Inflate(annotationRectangle, 30, 30);
            polyline.Points = polylgonalAnnotationPoints;
            polyline.BorderWidth = 3;
            polyline.InteriorColor = System.Drawing.Color.Red;
            polyline.Color = System.Drawing.Color.Green;
            polyline.StartPointLineEndingStyle =
                Vintasoft.Imaging.Pdf.Tree.Annotations.PdfAnnotationLineEndingStyle.ClosedArrow;
            polyline.EndPointLineEndingStyle =
                Vintasoft.Imaging.Pdf.Tree.Annotations.PdfAnnotationLineEndingStyle.Diamond;
            polyline.UpdateAppearance();
            page.Annotations.Add(polyline);

            document.SaveChanges();
        }
    }



    Inheritance Hierarchy

    System.Object
       Vintasoft.Imaging.Pdf.Tree.PdfTreeNodeBase
          Vintasoft.Imaging.Pdf.Tree.Annotations.PdfAnnotation
             Vintasoft.Imaging.Pdf.Tree.Annotations.PdfMarkupAnnotation
                Vintasoft.Imaging.Pdf.Tree.Annotations.PdfPolygonalAnnotation
                   Vintasoft.Imaging.Pdf.Tree.Annotations.PdfPolylineAnnotation

    Requirements

    Target Platforms: .NET 8; .NET 7; .NET 6; .NET Framework 4.8, 4.7, 4.6, 4.5, 4.0, 3.5
