    PdfSquareAnnotation Class
    In This Topic
    Represents a PDF annotation that displays a square.

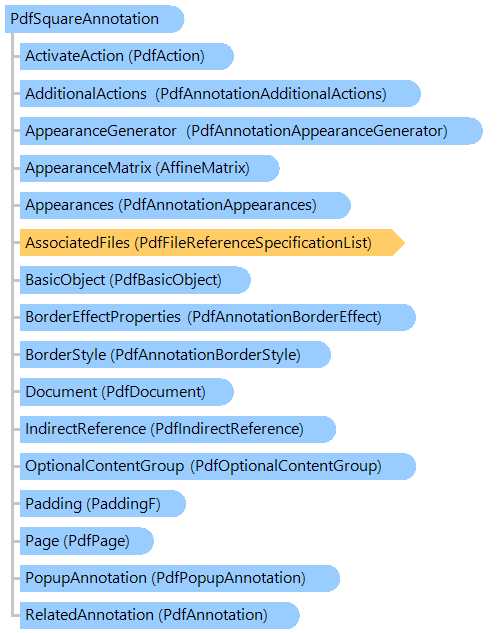

    Object Model
    PdfAnnotationBorderEffect PaddingF PdfPopupAnnotation PdfAnnotation PdfFileReferenceSpecificationList PdfAnnotationAppearanceGenerator PdfOptionalContentGroup PdfPage PdfAnnotationBorderStyle AffineMatrix PdfAction PdfAnnotationAppearances PdfAnnotationAdditionalActions PdfDocument PdfIndirectReference PdfBasicObject PdfSquareAnnotation
    Syntax
    'Declaration

    Public Class PdfSquareAnnotation
       Inherits PdfRectangularAnnotation


    public class PdfSquareAnnotation : PdfRectangularAnnotation


    public __gc class PdfSquareAnnotation : public PdfRectangularAnnotation*


    public ref class PdfSquareAnnotation : public PdfRectangularAnnotation^


    Example

    Here is an example that shows how to create a PDF square annotation:


    ''' <summary>
    ''' Creates the PDF documenet with square annotation.
    ''' </summary>
    ''' <param name="outputPdfFilename">The output PDF filename.</param>
    Public Shared Sub CreatePdfSquareAnnotation(outputPdfFilename As String)
        Using document As New Vintasoft.Imaging.Pdf.PdfDocument(outputPdfFilename, Vintasoft.Imaging.Pdf.PdfFormat.Pdf_14)
            Dim page As Vintasoft.Imaging.Pdf.Tree.PdfPage

            ' Add new page
            page = document.Pages.Add(Vintasoft.Imaging.PaperSizeKind.A4)
            page.Annotations = New Vintasoft.Imaging.Pdf.Tree.Annotations.PdfAnnotationList(document)
            Dim annotationRectangle As System.Drawing.RectangleF = page.MediaBox
            annotationRectangle.Inflate(-200, -300)

            ' Square annotation
            Dim square As New Vintasoft.Imaging.Pdf.Tree.Annotations.PdfSquareAnnotation(page)
            square.Rectangle = annotationRectangle
            square.BorderWidth = 3
            square.Padding = New Vintasoft.Imaging.PaddingF(square.BorderWidth)
            square.InteriorColor = System.Drawing.Color.Red
            square.Color = System.Drawing.Color.Green
            square.UpdateAppearance()
            page.Annotations.Add(square)

            document.SaveChanges()
        End Using
    End Sub



    /// <summary>
    /// Creates the PDF documenet with square annotation.
    /// </summary>
    /// <param name="outputPdfFilename">The output PDF filename.</param>
    public static void CreatePdfSquareAnnotation(string outputPdfFilename)
    {
        using (Vintasoft.Imaging.Pdf.PdfDocument document = new Vintasoft.Imaging.Pdf.PdfDocument(
            outputPdfFilename, Vintasoft.Imaging.Pdf.PdfFormat.Pdf_14))
        {
            Vintasoft.Imaging.Pdf.Tree.PdfPage page;

            // Add new page
            page = document.Pages.Add(Vintasoft.Imaging.PaperSizeKind.A4);
            page.Annotations = new Vintasoft.Imaging.Pdf.Tree.Annotations.PdfAnnotationList(document);
            System.Drawing.RectangleF annotationRectangle = page.MediaBox;
            annotationRectangle.Inflate(-200, -300);

            // Square annotation
            Vintasoft.Imaging.Pdf.Tree.Annotations.PdfSquareAnnotation square =
                new Vintasoft.Imaging.Pdf.Tree.Annotations.PdfSquareAnnotation(page);
            square.Rectangle = annotationRectangle;
            square.BorderWidth = 3;
            square.Padding = new Vintasoft.Imaging.PaddingF(square.BorderWidth);
            square.InteriorColor = System.Drawing.Color.Red;
            square.Color = System.Drawing.Color.Green;
            square.UpdateAppearance();
            page.Annotations.Add(square);

            document.SaveChanges();
        }
    }



    Inheritance Hierarchy

    System.Object
       Vintasoft.Imaging.Pdf.Tree.PdfTreeNodeBase
          Vintasoft.Imaging.Pdf.Tree.Annotations.PdfAnnotation
             Vintasoft.Imaging.Pdf.Tree.Annotations.PdfMarkupAnnotation
                Vintasoft.Imaging.Pdf.Tree.Annotations.PdfRectangularAnnotation
                   Vintasoft.Imaging.Pdf.Tree.Annotations.PdfSquareAnnotation

    Requirements

    Target Platforms: .NET 8; .NET 7; .NET 6; .NET Framework 4.8, 4.7, 4.6, 4.5, 4.0, 3.5
