    WpfZoomSelectionTool Class
    In This Topic
    Visual tool for zooming of image region in image viewer.

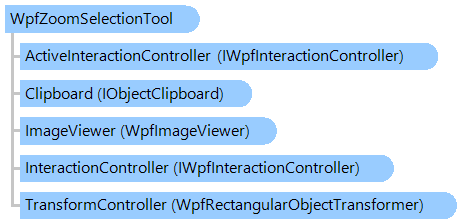

    Object Model
    IWpfInteractionController IWpfInteractionController WpfRectangularObjectTransformer IObjectClipboard WpfImageViewer WpfZoomSelectionTool
    Syntax
    'Declaration

    <DesignTimeVisibleAttribute("Visible = False")>
    <ToolboxItemAttribute("ToolboxItemType = null", "ToolboxItemTypeName = ")>
    <DefaultPropertyAttribute("Content")>
    <ContentPropertyAttribute("Content")>
    <LocalizabilityAttribute(None)>
    <StyleTypedPropertyAttribute("Property = FocusVisualStyle", "StyleTargetType = System.Windows.Controls.Control")>
    <XmlLangPropertyAttribute("Name = Language")>
    <UsableDuringInitializationAttribute("Usable = True")>
    <RuntimeNamePropertyAttribute("Name = Name")>
    <UidPropertyAttribute()>
    <TypeDescriptionProviderAttribute("TypeName = MS.Internal.ComponentModel.DependencyObjectProvider")>
    <NameScopePropertyAttribute("Name = NameScope", "Type = System.Windows.NameScope")>
    Public Class WpfZoomSelectionTool
       Inherits WpfRectangularSelectionTool


    [DesignTimeVisible("Visible = False")]
    [ToolboxItem("ToolboxItemType = null", "ToolboxItemTypeName = ")]
    [DefaultProperty("Content")]
    [ContentProperty("Content")]
    [Localizability(None)]
    [StyleTypedProperty("Property = FocusVisualStyle", "StyleTargetType = System.Windows.Controls.Control")]
    [XmlLangProperty("Name = Language")]
    [UsableDuringInitialization("Usable = True")]
    [RuntimeNameProperty("Name = Name")]
    [UidProperty()]
    [TypeDescriptionProvider("TypeName = MS.Internal.ComponentModel.DependencyObjectProvider")]
    [NameScopeProperty("Name = NameScope", "Type = System.Windows.NameScope")]
    public class WpfZoomSelectionTool : WpfRectangularSelectionTool


    [DesignTimeVisible("Visible = False")]
    [ToolboxItem("ToolboxItemType = null", "ToolboxItemTypeName = ")]
    [DefaultProperty("Content")]
    [ContentProperty("Content")]
    [Localizability(None)]
    [StyleTypedProperty("Property = FocusVisualStyle", "StyleTargetType = System.Windows.Controls.Control")]
    [XmlLangProperty("Name = Language")]
    [UsableDuringInitialization("Usable = True")]
    [RuntimeNameProperty("Name = Name")]
    [UidProperty()]
    [TypeDescriptionProvider("TypeName = MS.Internal.ComponentModel.DependencyObjectProvider")]
    [NameScopeProperty("Name = NameScope", "Type = System.Windows.NameScope")]
    public __gc class WpfZoomSelectionTool : public WpfRectangularSelectionTool*


    [DesignTimeVisible("Visible = False")]
    [ToolboxItem("ToolboxItemType = null", "ToolboxItemTypeName = ")]
    [DefaultProperty("Content")]
    [ContentProperty("Content")]
    [Localizability(None)]
    [StyleTypedProperty("Property = FocusVisualStyle", "StyleTargetType = System.Windows.Controls.Control")]
    [XmlLangProperty("Name = Language")]
    [UsableDuringInitialization("Usable = True")]
    [RuntimeNameProperty("Name = Name")]
    [UidProperty()]
    [TypeDescriptionProvider("TypeName = MS.Internal.ComponentModel.DependencyObjectProvider")]
    [NameScopeProperty("Name = NameScope", "Type = System.Windows.NameScope")]
    public ref class WpfZoomSelectionTool : public WpfRectangularSelectionTool^


    Remarks

    Rectangular region of image in image viewer can be zoomed as follows:

    • place the mouse on desired position
      select the "zoom" region using the action button (ActionButton)
      press the action button (ActionButton) inside the "zoom" region for zooming of image; press any mouse button outside of the "zoom" region for canceling zooming of image
  • Inheritance Hierarchy

    System.Object
       System.Windows.Threading.DispatcherObject
          System.Windows.DependencyObject
             System.Windows.Media.Visual
                System.Windows.UIElement
                   System.Windows.FrameworkElement
                      System.Windows.Controls.Control
                         System.Windows.Controls.ContentControl
                            Vintasoft.Imaging.Wpf.UI.VisualTools.WpfVisualTool
                               Vintasoft.Imaging.Wpf.UI.VisualTools.UserInteraction.WpfUserInteractionVisualTool
                                  Vintasoft.Imaging.Wpf.UI.VisualTools.WpfRectangularSelectionTool
                                     Vintasoft.Imaging.Wpf.UI.VisualTools.WpfZoomSelectionTool

    Requirements

    Target Platforms: .NET 8; .NET 7; .NET 6; .NET Framework 4.8, 4.7, 4.6, 4.5, 4.0, 3.5
