    ColorTransforms Class
    In This Topic
    Represents a collection of most commonly used standard color transforms.

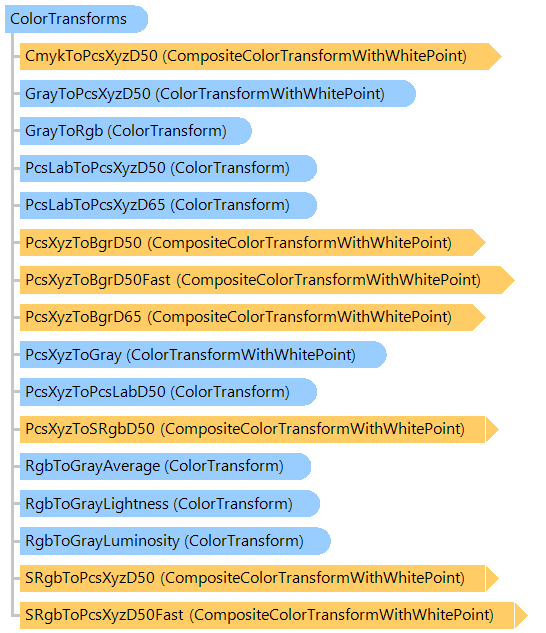

    Object Model
    ColorTransform ColorTransform ColorTransform ColorTransform ColorTransform ColorTransform CompositeColorTransformWithWhitePoint CompositeColorTransformWithWhitePoint CompositeColorTransformWithWhitePoint CompositeColorTransformWithWhitePoint CompositeColorTransformWithWhitePoint CompositeColorTransformWithWhitePoint ColorTransformWithWhitePoint ColorTransformWithWhitePoint ColorTransforms
    Syntax
    'Declaration

    Public MustInherit NotInheritable Class ColorTransforms


    public static class ColorTransforms


    public __gc abstract __sealed class ColorTransforms


    public ref class ColorTransforms abstract sealed


    Example

    Here is an example that shows how to convert a color in RGB format to a color in XYZ format using standard color transform from sRGB to PCSXYZ:


    ''' <summary>
    ''' Returns a XYZ color converted from specified RGB color
    ''' using standard color transform.
    ''' </summary>
    Public Shared Function TransformRgbToXyz(rgbColor As Vintasoft.Imaging.ImageColors.Rgb24Color) As Vintasoft.Imaging.ImageColors.XyzColor
        ' fill buffer of RGB color
        Dim sourceColor As Byte() = New Byte(2) {}
        sourceColor(0) = rgbColor.Red
        sourceColor(1) = rgbColor.Green
        sourceColor(2) = rgbColor.Blue

        ' create buffer for XYZ color
        Dim destColor As Double() = New Double(2) {}
        ' perform color transform from byte values to double values
        Vintasoft.Imaging.ColorManagement.ColorTransforms.SRgbToPcsXyzD50.TransformFrom8bitVector(sourceColor, 0, 1, destColor, 0)

        ' return XYZ color
        Return New Vintasoft.Imaging.ImageColors.XyzColor(destColor(0), destColor(1), destColor(2))
    End Function



    /// <summary>
    /// Returns a XYZ color converted from specified RGB color
    /// using standard color transform.
    /// </summary>
    public static Vintasoft.Imaging.ImageColors.XyzColor TransformRgbToXyz(
        Vintasoft.Imaging.ImageColors.Rgb24Color rgbColor)
    {
        // fill buffer of RGB color
        byte[] sourceColor = new byte[3];
        sourceColor[0] = rgbColor.Red;
        sourceColor[1] = rgbColor.Green;
        sourceColor[2] = rgbColor.Blue;

        // create buffer for XYZ color
        double[] destColor = new double[3];
        // perform color transform from byte values to double values
        Vintasoft.Imaging.ColorManagement.ColorTransforms.SRgbToPcsXyzD50.TransformFrom8bitVector(
            sourceColor, 0, 1, destColor, 0);

        // return XYZ color
        return new Vintasoft.Imaging.ImageColors.XyzColor(destColor[0], destColor[1], destColor[2]);
    }



    Inheritance Hierarchy

    System.Object
       Vintasoft.Imaging.ColorManagement.ColorTransforms

    Requirements

    Target Platforms: .NET 8; .NET 7; .NET 6; .NET Framework 4.8, 4.7, 4.6, 4.5, 4.0, 3.5
