    QuadrilateralWarpCommand Class
    In This Topic
    Transforms an image using quadrilateral warp or unwarp (IsInverseTransform).

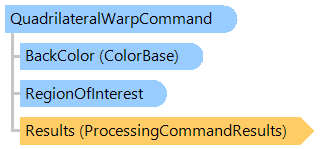

    Object Model
    ColorBase RegionOfInterest ProcessingCommandResults QuadrilateralWarpCommand
    Syntax
    'Declaration

    Public Class QuadrilateralWarpCommand
       Inherits ImageTransformationBasedCommand


    public class QuadrilateralWarpCommand : ImageTransformationBasedCommand


    public __gc class QuadrilateralWarpCommand : public ImageTransformationBasedCommand*


    public ref class QuadrilateralWarpCommand : public ImageTransformationBasedCommand^


    Remarks

    Inverse transform can be used to perspective correction.

    Example

    This C#/VB.NET code shows how to load an image from disk, skew the image horizontally and save the result to a new image file.


    Public Sub ProcessImage()
        ' [ do not forget to set your image file path here! ]
        ' create an image collection
        Using images As New Vintasoft.Imaging.ImageCollection()
            ' add image to the image collection
            images.Add("Flower.jpg")
            Try
                ' create the image processing command
                Dim command As New Vintasoft.Imaging.ImageProcessing.Transforms.QuadrilateralWarpCommand(New System.Drawing.PointF() {New System.Drawing.PointF(50, 50), New System.Drawing.PointF(175, 75), New System.Drawing.PointF(75, 175), New System.Drawing.PointF(250, 250)})

                ' subscribe to progress event of image processing command
                AddHandler command.Progress, New System.EventHandler(Of Vintasoft.Imaging.ImageProcessing.ImageProcessingProgressEventArgs)(AddressOf command_Progress)

                Try
                    ' for each image in image collection
                    For Each image As Vintasoft.Imaging.VintasoftImage In images
                        ' apply the image processing command to the image
                        command.ExecuteInPlace(image)
                    Next
                Catch ex As Vintasoft.Imaging.ImageProcessing.ImageProcessingException
                    ' show error message
                    System.Windows.Forms.MessageBox.Show(ex.Message)
                    Return
                End Try

                ' save the processed image collection to a new TIFF file
                images.SaveSync("processed-image.tif")
            Finally
                images.ClearAndDisposeItems()
            End Try
        End Using
    End Sub

    Private Sub command_Progress(sender As Object, e As Vintasoft.Imaging.ImageProcessing.ImageProcessingProgressEventArgs)
        ' update progress info using e.Progress property
        ' ...

        ' cancel execution of command using e.Cancel property if necessary
        ' ...
    End Sub



    public void ProcessImage()
    {
        // [ do not forget to set your image file path here! ]
        // create an image collection
        using (Vintasoft.Imaging.ImageCollection images = new Vintasoft.Imaging.ImageCollection())
        {
            // add image to the image collection
            images.Add("Flower.jpg");
            try
            {
                // create the image processing command
                Vintasoft.Imaging.ImageProcessing.Transforms.QuadrilateralWarpCommand command =
                    new Vintasoft.Imaging.ImageProcessing.Transforms.QuadrilateralWarpCommand(
                        new System.Drawing.PointF[] {
                        new System.Drawing.PointF(50, 50), new System.Drawing.PointF(175, 75),
                        new System.Drawing.PointF(75, 175), new System.Drawing.PointF(250, 250)
                            });

                // subscribe to progress event of image processing command
                command.Progress +=
                    new System.EventHandler<Vintasoft.Imaging.ImageProcessing.ImageProcessingProgressEventArgs>(command_Progress);

                try
                {
                    // for each image in image collection
                    foreach (Vintasoft.Imaging.VintasoftImage image in images)
                    {
                        // apply the image processing command to the image
                        command.ExecuteInPlace(image);
                    }
                }
                catch (Vintasoft.Imaging.ImageProcessing.ImageProcessingException ex)
                {
                    // show error message
                    System.Windows.Forms.MessageBox.Show(ex.Message);
                    return;
                }

                // save the processed image collection to a new TIFF file
                images.SaveSync("processed-image.tif");
            }
            finally
            {
                images.ClearAndDisposeItems();
            }
        }
    }

    void command_Progress(object sender, Vintasoft.Imaging.ImageProcessing.ImageProcessingProgressEventArgs e)
    {
        // update progress info using e.Progress property
        // ...

        // cancel execution of command using e.Cancel property if necessary
        // ...
    }



    Inheritance Hierarchy
    Requirements

    Target Platforms: .NET 8; .NET 7; .NET 6; .NET Framework 4.8, 4.7, 4.6, 4.5, 4.0, 3.5
